Dough Sheeting Machine





producto tp



The highest technollogy and an advanced design are joined to the dough sheeting machines for replying the most exigent requirements of professionals: uniform thickness, large production and better finishing of the product.
Highest quality construction, in stainless steel (AISI 304) and aluminium, with hard chromium-plated rollers.
Diferential speed between the entry and exit bands. Instantaneous advance direction inversion of the bands.
Overcome all the safety and hygienic rules. Electrical equipment in low tension, ergonomic controls, safety protectors, etc
Adjustment cylinder opening very exact. No maintenance required. Flour box.
Tilting bands.




ctv

EF 60

Gross weight: 260 kg
Net weight: 200 kg
Power: 0,75 Kw - 1 CV
Three phase voltage: 220 / 380 V III
Bands Width: 600 mm
Progressive final descending: from 0,5 in 0,5 mm
Maximum opening: 30 mm
Working speed: 2

catalogue | movie

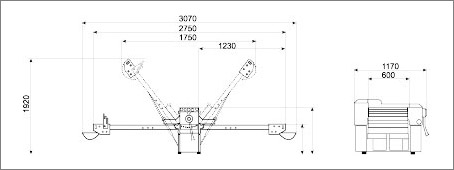

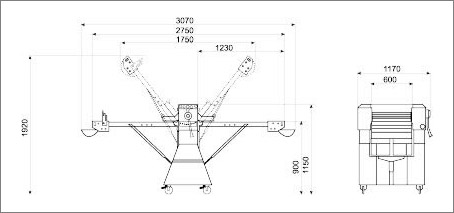

size




ctv

EF 50

Gross weight: 120 kg
Net weight: 100 kg
Power: 0,375 Kw - 0,5 CV
Three phase voltage: 220 / 380 V III
Bands Width: 500 mm
Progressive final descending: from 0,5 in 0,5 mm
Maximum opening: 30 mm
Working speed: 1

catalogue













size
